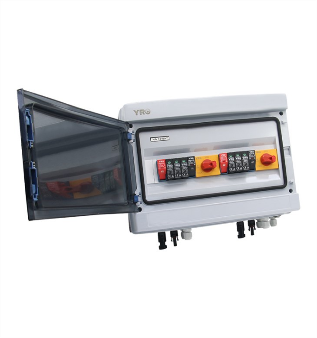

Features: 2 input 2 output 1000V DC. DC string box is designed for 2 string PV system. For surge protection and isolating at solar DC side. Lightning protection (TUV CE), waterproof and dustproof IP65. The box is supplied with: 1P fuse 30A (4 pcs). DC switch: 1000V/32A DC (2pcs). DC SPD: 3P, 1000V DC (2pcs). Designed for protection of photovoltaic cells. Certifications: TUV, CE, CB, RoSH. Technical specifications: Input: 2 string. Output: 2 string. Max voltage: 1000V. Max current: 32A. Enclosure material: HA. Safety class: IP65. Dimensions: 240x210x100 mm. Operating temperature: -25°C ~ +60°C.
Product Name
|
DC combiner box
|
|
Model Code
|
|
|
Rated Voltage
|
1000V
|
|
Input
|
2string
|
|
output
|
2string
|
|
Temperature range
|
-25℃~+55℃
|
|
Certificate
|
TUV / CE / CB /TUV
|
|
Enclosure
|
|
|
IP Protection Class(IEC60529)
|
IP65
|
|
Materials
|
Polycarbonate / ABS
|
|
Spec
|
UV resistance and Flame retardant
|
|
DC switch
|
|
|
Rated Voltage
|
1000V
|
|
Rated Current
|
40A
|
|

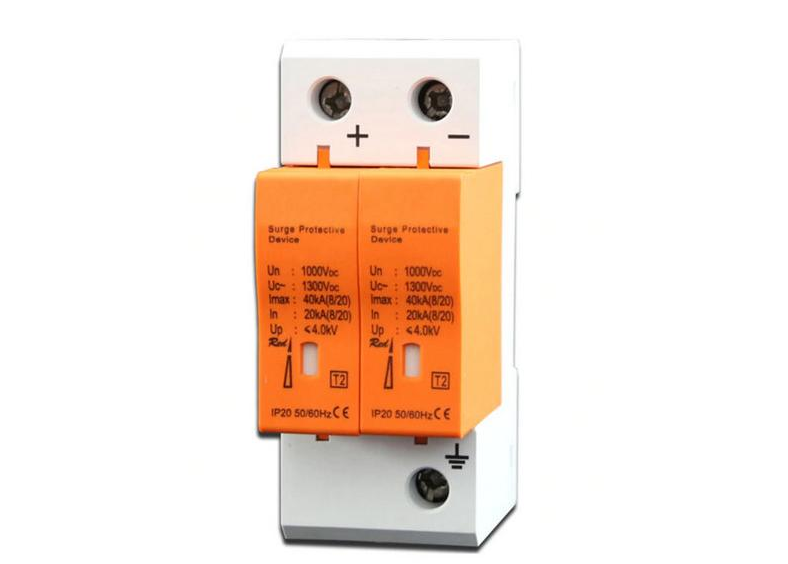

DC SPD
|
|
|
Max Operating Voltage
|
1000V
|
|
Max Discharge Current
|
40KA
|
|
Nominal discharge current
|
20KA
|
|

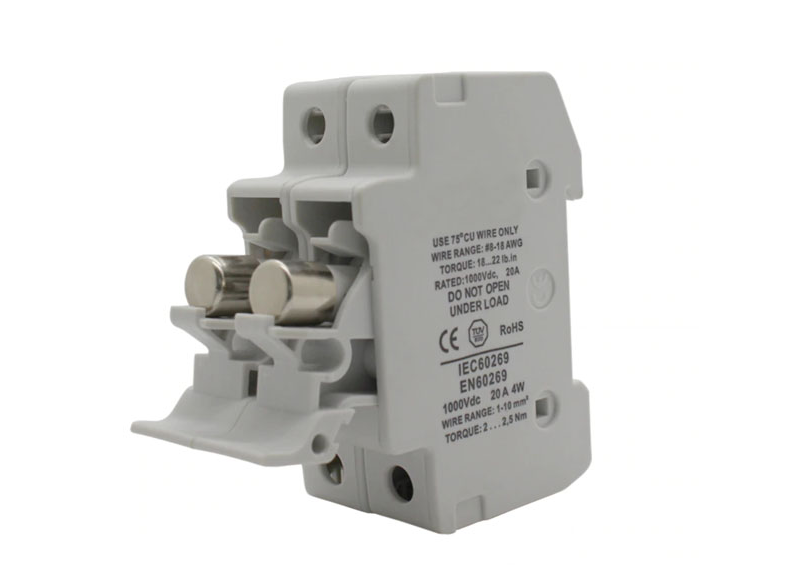

DC Fuse
|
|
|
Rated Voltage
|
1000V
|
|
Fuse link
|
32A 10*38MMMM |
